Description

The Posture platform for computerised diagnosis of balance
disorders and biofeedback training from German manufac-
turer Otopront

The system performs analysis using the Romberg test and
the Unterberger’s walking test.

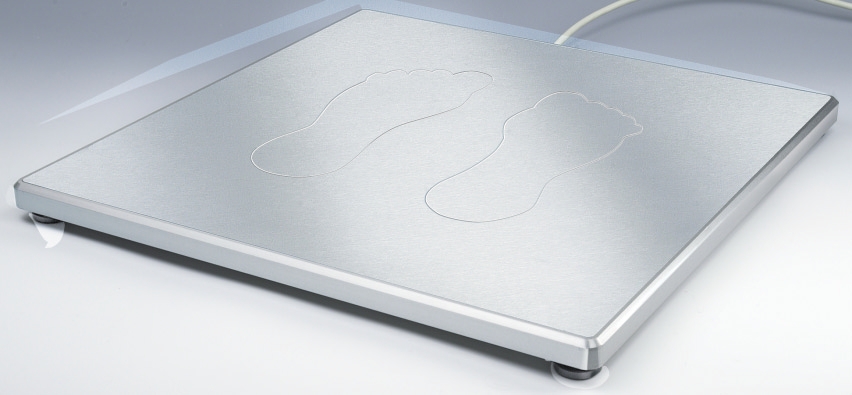

The LUCERNE MEASURING PLATE allows a convenient
diagnosis of balance disorders without subjecting the patient
to undue stress. Postural instability is analysed with the aid of
a computer providing objective information on functional
vestibular deficiency. Individual plans for training with the
LUCERNE MEASURING PLATE can then be drawn up, based
on these findings.

The special software allows each measurement parameter to
be set individually. In addition to routine posturographic
applications in line with Romberg’s test involving
distance-time curves, lateral, anterior and posterior
components, Romberg’s quotient and Dichgans’ histogram,
the software provides comprehensive analysis of Unterberg-
er’s walking experiment. Results of angle of rotation and
frequency analysis (FFT) are also displayed in diagrammatic
and numerical form.

ROMBERG PLATFORM

Measuring plate: 50 x 50 x 3.6 cm (Wx Dx H), weight 18 kg
Processing unit: 26.5 x29 x30 cm (Wx D x H)
Diagnostic mode: Romberg “eyes open”,“eyes closed”
Training mode: two programs for visual feedback training
Options: second monitor, keyboard

UNIVERSAL PLATFORM

Measuring plate: 105 x105 x 6 cm (W xDx H), weight 70 kg
Processing unit: 55x52x150cm (WxDxH)
Equipment: comprehensive software package including
analysis of Unterberger’s walking experiment, individual modes for diagnostic
and training, zoom and slow motion function, integrated patient database

TECHNICAL DETAILS

Maximum load: 2500 N
Tolerance: < ± 0.5%
Test time: 1…99 seconds, adjustable
Monitor: TFT flat screen, integrated into unit
Remote control: controls all device functions
Printer: laser printer, standard A4 paper
Analysis: posturogram, distance-time curves,
lateral, anterior and posterior components,
Romberg’s quotient and Dichgans histogram
Features: measuring plate in flat design, stainless
steel, automatically calibrated sensors with full
external heat compensation, colour screen with
ergonomic viewing angle, body’s centre of gravity
displayed in real-time, language of the posture
system selectable
Power: 230 V, 50/60 Hz
Protection class: class I equipment
CE mark: in accordance with MDD 93/42/ EEC
